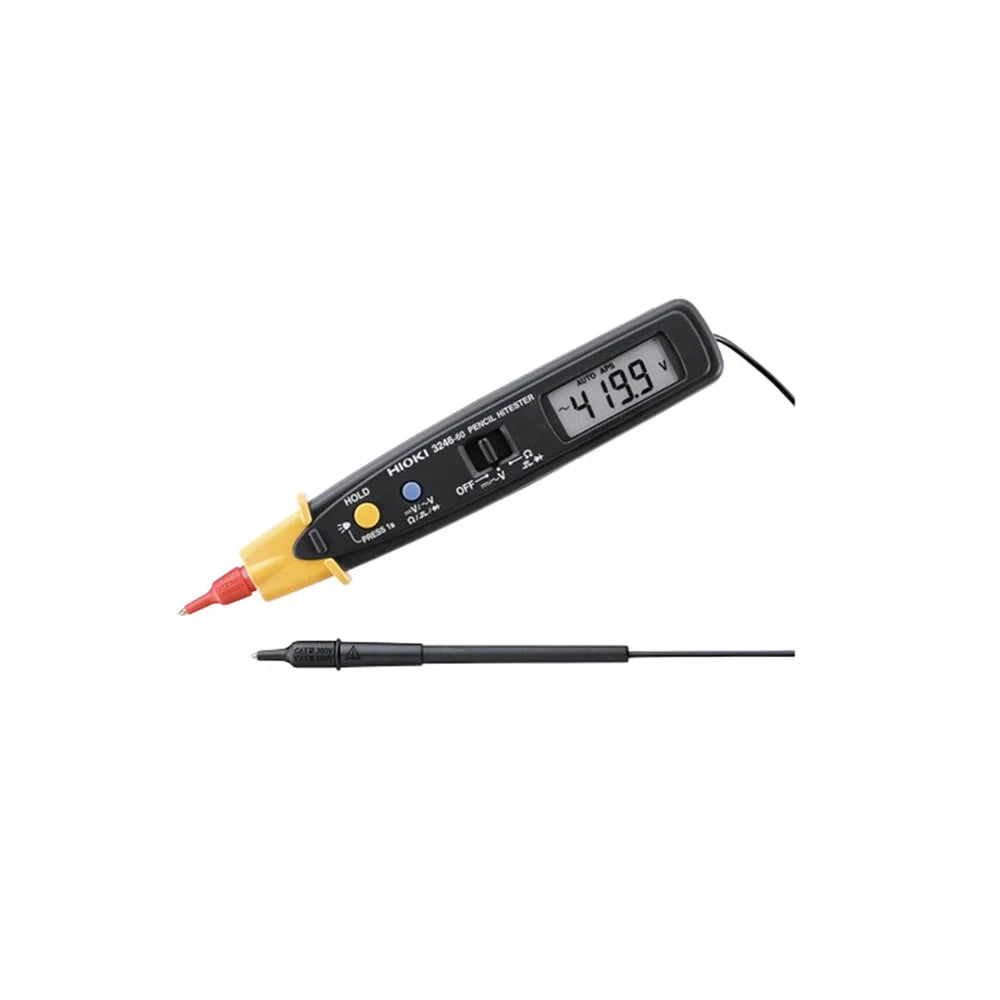

HIOKI 3246-60 Pencil HiTester

Features:

• Test lead and main unit in a single body

• Overload protection to 600 V at resistance or continuity functions

• LED light brightly illuminates test points

• Digital multimeter measures voltage and resistance

• Average-sensing meter provides accurate readings when measuring linear loads where the current or voltage has an undistorted waveform

• Built-in flashlight illuminates dark work areas

• Pen-sized meter fits in a shirt pocket when not in use

• Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category II installations up to 600V, Category III installations up to 600V, and Category IV installations up to 300V



  Display Specification
  Display	Digital LCD, max. 4199 digits
  Summary
  Continuity buzzer	Detection level 50 Ω ±40 Ω
  DC Voltage	419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
  Diode test	Judges the right direction only, Open terminal voltage: 3.4 V or less, Testing current: 800 µA or less
  AC Voltage	4.199 V to 600 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
  Resistance	419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt
  Sampling Time	2.5 times/sec
  Weight	80 g (2.8 oz)
  General Specification
  Power Supply	Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours (at DC V function), 30 hours (with light turned on for 10 seconds and off for 20 seconds per cycle and in DC V function)
  Dimension	30 mm (1.18 in)W × 182 mm (7.17 in)H × 26.5 mm (1.04 in)D
