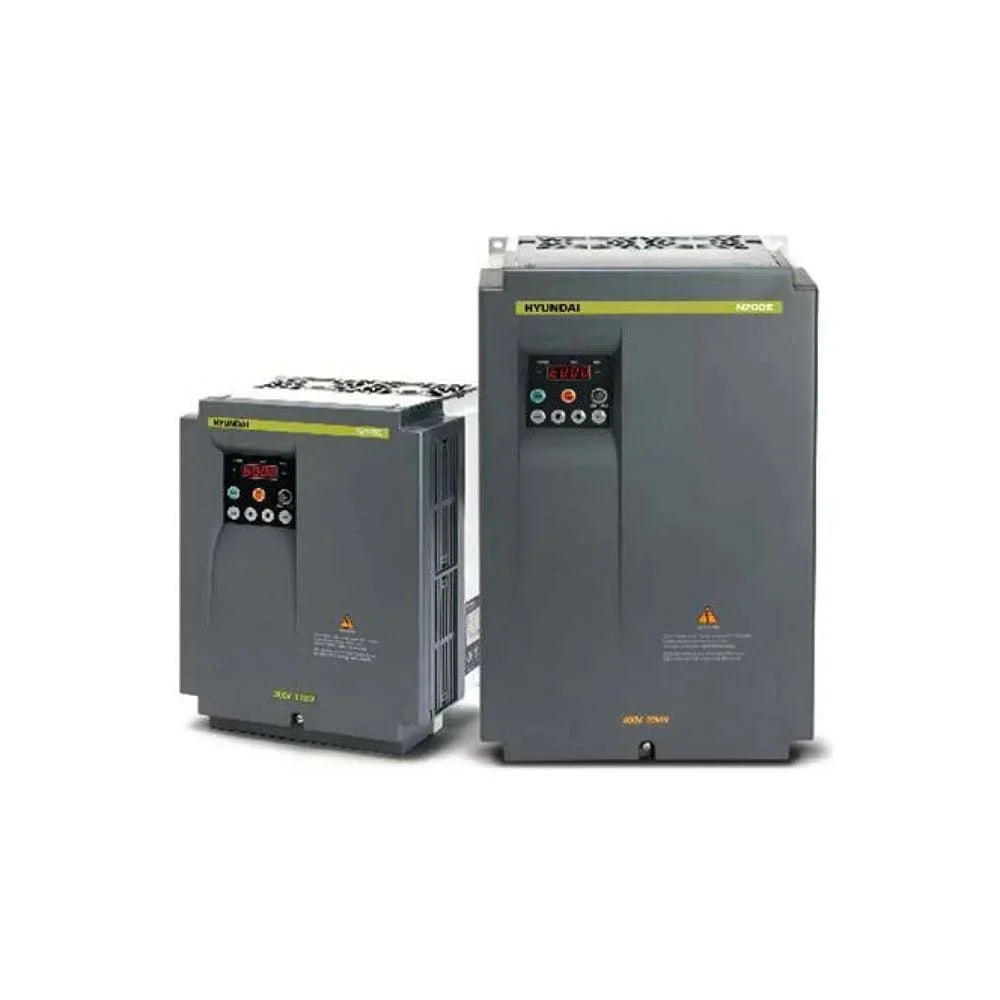

Hyundai N700E-015HF Inverter 1.5KW / 2HP
Hyundai N700E-015HF Inverter 1.5KW / 2HP
Regular price
$830.00 USD
Regular price
Sale price
$830.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The HYUNDAI N700E Series High Performance Drives offer powerful control solutions with exceptional speed control and torque response which provides superior vector performance.The N700E’s compact size and sensorless vector control technology provides perfectly optimized performance for industrial and commercial applications.
Certificates of international standards (UL/cUL, CE) for the N700E series make it perfect for global applications. Compatible with the most common loads such as: fans, blowers, compressors, pumps, mixers, agitators, feeders, centrifuges, cranes, hoists, presses, sa14, extruders, and textile spinning machines.
Features:
- Sensorless Vector Control
- 0.01 - 400hz
- 150% overload for one minute, CT application
- 120% overload for one minute, VT application
- 3000 second accel/decel
- DC braking
- Auto-tuning
- BDR brake function
- AVR function
- Six level multi-speed
- Adjustable carrier frequencies
- PID control
- Frequency jump
- Analog gain bias
- Jog run
- Electronic thermal overload
- Auto-torque boost, trip history monitor and software lock
- 50°C ambient
- Speed search function
- Intelligent input function
- RS485 - Modbus communications
| POWER | |
| Voltage | 400V |
| Summary | |
| Motor Rating | 1.5 KW |
| Torque | 1.2 (N-m) |
| TECHNICAL SPECIFICATION | |
| Screw Size | M4 |
| General Specification | |
| HP | 2 HP |
| Width | 11 mm |
