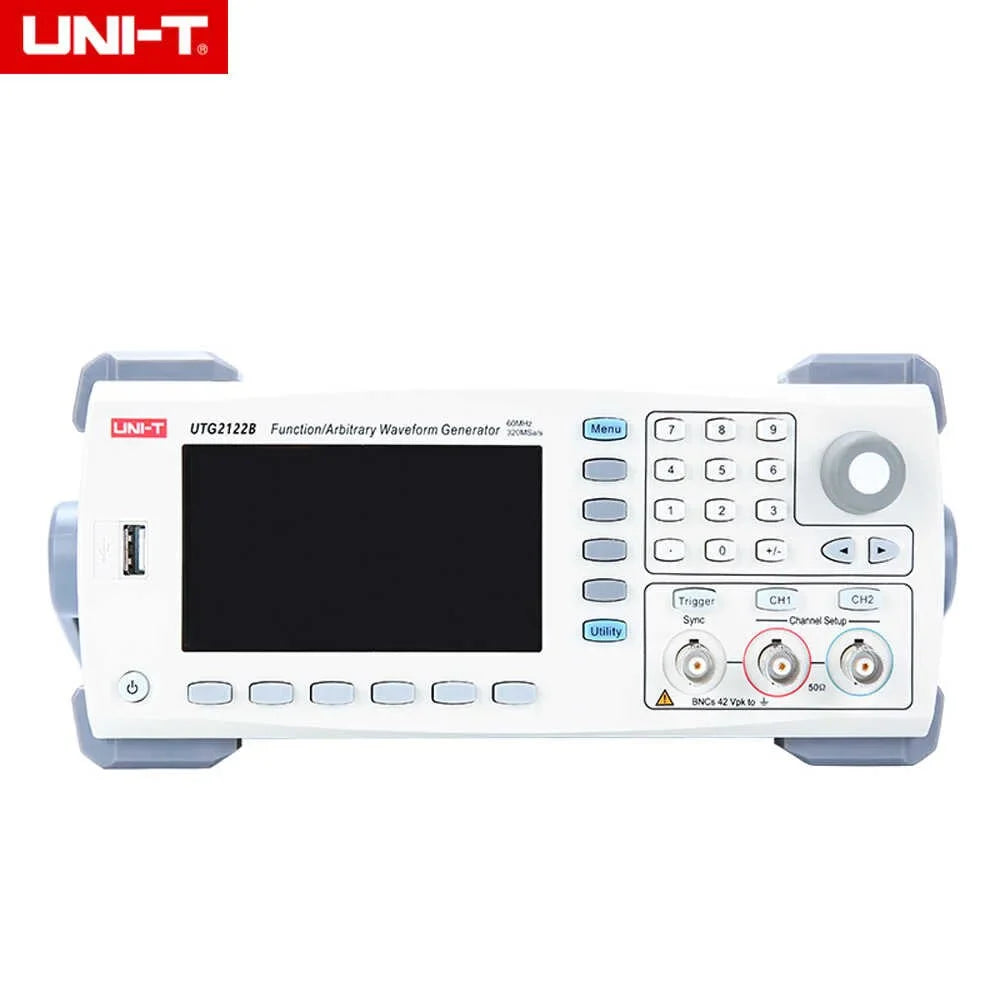

Uni-T UTG2122B Function/Arbitrary Waveform Generator

Uni-T UTG2122B Function/Arbitrary Waveform Generator

$634.00 USD
$634.00 USD
Sale Sold out
Shipping calculated at checkout.
The UNI-T UTG2122B function generator belongs to the UNI-T UTG2000B series and has a maximum bandwidth of 120 MHz.
UTG2122B can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.

Features:



  • 1μHz full-band resolution
  • 5MHz~30MHz pulse waveform, adjustable rise/fall time
  • 14-bit/16-bit vertical resolution
  • Two equivalent-performance channels
  • Max arbitrary waveform length of 8k/16M points; 48/161
  • non-volatile waveforms storage

    Computers Specs
    Color White and grey
    Display Specification
    Display 4.3-inch TFT LCD, WVGA (480 x 272)
    Summary
    Resolution 1μHz
    Size 265mm x 110mm x 320mm
    Antenna
    Frequency 120MHz
    HARDWARE FEATURES
    Length 8pts~16Mpts
    Working Mode Output on/off, continuous, modulation, sweep, burst
    TECHNICAL SPECIFICATION
    Sampling Rate 320MS/s
    General Specification
    Channels 2
    Interfaces USB Host, USB Device, 10MHz clock source input/output
    Power 100V~240V ACrms, 50Hz/60Hz
    Vertical resolution 16 bits (symbol included)
    Waveform Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic
    Weight 3.2kg
